Development environment overview

Architectural overview

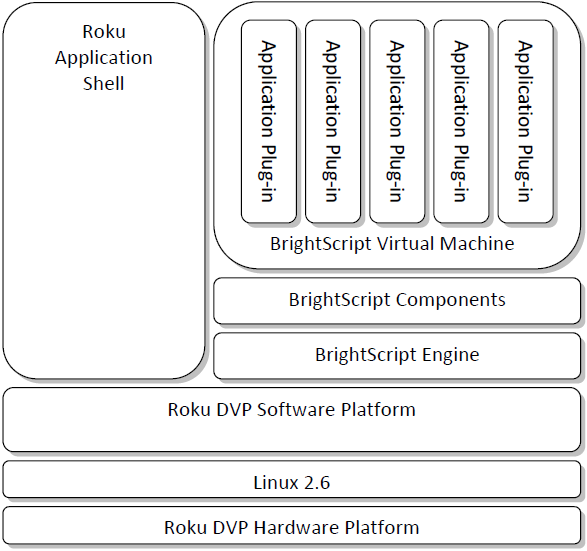

roku815px - Architecture block diagram

The diagram above provides a high-level overview of the main system components for the Roku Streaming Player platform. Developer applications are written using the BrightScript programming language. These applications are designed to be standalone entities that can be deployed to a running system with minimal impact.

BrightScript applications are dynamically loaded at runtime and run within a unique context within the BrightScript virtual machine. They are "sand-boxed" and run protected from other areas of the system. Scripts only have access to platform resources that are exposed to the scripting layer as BrightScript components. Developers have a wide selection of built-in elements from the BrightScript programming language, plus additional platform components to build their applications. See the BrightScript Reference and the Component Reference for additional information.

User interface elements/Object model

The Roku SDK uses the BrightScript programming language for development and exposes a set of interfaces to platform services through BrightScript Components. These platform SDK services include capabilities such as networking, video playback, user interface, and data management. The objects in the Roku SDK are divided into two primary areas:

  • Core Objects – Fundamental objects that exist on all Roku platforms and are device independent
  • Platform Objects – Objects unique to a specific platform, such as the Roku Streaming Player

Developing an application for the Roku Streaming Player consists of writing a BrightScript application, packaging the application and associated resource files and deploying it to the platform. During development packaging consists of a structured ZIP file. For final deployment, tools are provided to create a signed and encrypted application package. At runtime, the player will enumerate the installed applications and display them on the main menu. When the user selects the application, the script(s) are loaded and control is passed to your application. When the user exits, the script is halted and control is returned to the user interface "shell".

User interface functionality available in the SDK includes:

  • Top-Level Menu (Launch screen for applications with logo art)
  • Poster Screen (Horizontally scrolling list of shows with poster art)
  • Springboard (Detail screen with options for displaying individual shows)
  • Video Player Screen (Video playback support with progress bar and trick mode support)
  • PIN Entry Screen (User entry of PIN for purchase/rental verification)
  • Message/Error Dialog (Dialog for display of errors and other user messages)
  • Filter Widget (Selection widget for filtering content display by type)
  • Rendezvous/Code Registration Screen (Display/validate registration codes)
  • Username/Password Registration Screen
  • Text Screen ( Display formatted text to the user and allow selection of options)
  • Search Screen (Keyword based search with progressive disclosure of results)

Detailed information on all these screens can be found in the BrightScript Component reference.

Display modes (HD/SD)

The user interface has been designed to support both High Definition (HD) and Standard Definition (SD) displays. By default the streaming player starts in SD mode, but allows the user the option to specify their display preferences. Display preferences are handled globally for all applications by selecting the "display type" option in "settings".

There are three possible modes:

  • 4:3 standard-definition (480i/p)
  • 16:9 anamorphic widescreen (480i/p)
  • HDTV (720p)

The SDK UI objects are SD/HD aware and will automatically display in the correct mode. In some cases, the HD mode will allow the user to see more data on the screen. The SD UI is rendered natively at 480p and the HD UI at 720p. As a developer, no special programming is required to support these display modes. Any artwork used by the application (movie posters, logos, etc.) should be provided in both HD and SD versions and included with the application or downloaded dynamically at runtime. The screen objects will attempt to scale improperly sized artwork, but this could result in a loss of quality or degrade performance. It is strongly recommended that developers provide original artwork in both resolutions.

Top-level menu

The top-level menu provides a launch point for all applications. Applications must provide HD and SD versions of the application icon artwork for display on the top-level menu. When an application is selected from the top-level menu, the application is loaded and control is transferred to the application. The user may return to the top level at any time by pressing the Home button. Pressing the Home button will always exit the application and unconditionally return control back to the UI application shell.

Entry points

There are several reserved function names that serve as entry points to the app.

Sub RunUserInterface()

Sub RunUserInterface(aa as Object)

RunUserInterface is the normal entry point which is called when a app is selected on the Roku Home Screen. It may take an roAssociativeArray parameter that is passed via the External Control APIs.

Sub Main()

Sub Main(aa as Object)

If there is no RunUserInterface() function in the application, the function Main() will be called as the entry point for the application.

"Source" parameter

The Main(aa) and RunUserInterface(aa) associative array contains the "source" named parameter. Its value represents the path the app was launched from. The values and their meanings are in the table below.

Value of "Source" Launched from
"homescreen" "home" section of the main Roku app selection page
"homescreen-menu" Launched from a left-hand menu other than Featured Free or Roku Search
"ad" Banner ads (for example, a home screen ad, mini ad, or screensaver ad)
"ad:screensaver" Roku screensaver ad. This is an ad that is displayed within the Roku system screensaver.
"ad:homelist" Roku mini ad. This is an ad that appears below the left-hand navigation menu on the home screen.
"external-control" ECP protocol (typically from the Deep Link tester or Roku mobile app)
"partner-button" partner button on the Roku remote
"other-channel" another app on the Roku device
"auto-run-dev" sideloaded developer app
"debug-server" debug server on port 8080.
"purchase-dialog" Purchase dialog in the Streaming Store
"hs-search" Roku Search
"voice-search" Roku Voice search command (Visual Search Results For Roku Voice; for example, "Weird")
"voice-command" Roku Voice command (Direct-to-Play; for example, "Play Weird")
"dial" DIAL protocol
"hs-d" launched from Featured Free page
"channel-store" Tile for app or associated content selected from Streaming Store.

"lastExitOrTerminationReason" parameter

Roku OS tracks the last exit code for each app. The last exit code is passed to the main() function of a running app in the lastExitOrTerminationReason field of the parameters associative array.

Exit codes do not persist across system reboots and system resumptions. The last exit code is reset to EXIT_UNKNOWN upon each app launch.

The Roku OS may add additional exit codes in the future. Any code or tooling that processes exit codes should handle unrecognized codes robustly.

Exit Code Description
EXIT_UNKNOWN The default exit code if there was no prior exit (for example, the inital app launch after system boot) or no unusual exit reason noted (for example, a scenario other than a BrightScript crash or system resources issue).
EXIT_POWER_MODE The app was exited by the system due to the device being powered off by the user (or by user-scheduled power off).
EXIT_DIAL_DELETE The app was exited due to the system receiving a DIAL command (for example from a second screen app controlling the app).
EXIT_OUT_OF_MEMORY The app was exited due to the system being under low memory conditions.
EXIT_IDLE_AUTO_EXIT The app was exited by the system after being detected as idle for a prolonged period of time, per the system policy and/or user settings.
EXIT_BRIGHTSCRIPT_CRASH The app was exited due to a BrightScript crash.
EXIT_BRIGHTSCRIPT_STOP The app was exited due to a BrightScript STOP command when running in production mode (non-developer sideloaded). The system treats this the same as a BrightScript runtime error.
EXIT_BRIGHTSCRIPT_UNK_FUNC The app was exited by the system due to an runtime function resolution error.
EXIT_BRIGHTSCRIPT_TIMEOUT The app was exited due to a BrightScript execution timeout error. A timeout error indicates that the app user interface was unresponsive for a prolonged period of time, such as a program lock-up.
EXIT_USER_KILL The app was exited due to either due to user shutdown (for example, from App Options) or by the system due to re-installation, re-configuration, or other shutdown.
EXIT_USER_NAV The app was exited by user navigation (such as the Home key or using Back to exit the app).
EXIT_AM_LOWRESOURCE The app was exited by the system due to low system resources. This typically applies to background apps only.
EXIT_SYSTEM_KILL A default exit code used in case of internal system error during app exit. This should not appear in normal usage.
EXIT_GRAPHICS_NOT_RELEASED A system error occurred while suspending an app related to system graphics resources. This should not appear in normal usage.
EXIT_DECODER_NOT_RELEASED A system error occurred while suspending an app related to system video resources. This should not appear in normal usage.
EXIT_RUNNING_AFTER_SUSPEND A system error occurred while suspending an app. This should not appear in normal usage.
EXIT_NOT_RESUMED A system error occurred while resuming an app. This should not appear in normal usage.
EXIT_SIGNAL_TIMEOUT A system error occurred while suspending or resuming an app. This should not appear in normal usage.
EXIT_APP_ERROR A default exit code used in case of internal system error in app tracking. This should not appear in normal usage.
EXIT_UNLOADED The app was exited due to the system offloading it due to low storage. This would typically apply only to background apps.
EXIT_GUEST_MODE_ENABLED The app was exited by the system due to the user enabling Guest Mode on the device.
EXIT_GUEST_MODE_DISABLED The app was exited by the system due to the user disabling Guest Mode on the device.
EXIT_GUEST_CHECKOUT The app was exited by the system due to the user exiting Guest Mode on the device.
EXIT_OS_UPDATE The app was exited by the system while applying a system update.
EXIT_CHANNEL_UPDATE The app was exited by the system while applying an app update.
EXIT_CHANNEL_SIDELOAD The app was exited due to the user installing a sideloaded app.
EXIT_CHANNEL_RESTART The app was exited due to an app-initiated restart. This is typically a reserved function in the system.
EXIT_TILE_HIDDEN The app was exited due to the user hiding the Soundbar tile on a Roku TV.
EXIT_SETTINGS_UPDATE The app was exited by the system due to a device settings update (for exampe, a theme or resolution change that required restart).
EXIT_CHANNEL_MEM_LIMIT_FG The app was exited by the system because it exceeded its memory limit while running in the foreground.
EXIT_CHANNEL_MEM_LIMIT_BG The app was exited by the system because it exceeded its memory limit while running in the background.
EXIT_ADDON_DEPENDENCY The app was exited by the system while applying a system dependency update. This should only apply while running in the background.
EXIT_SOFTFAIL The app was exited by the system because of an incompatibility with the runtime environment. In this case, the system may restart the app automatically after resolving the issue.

Sub RunScreenSaver()

RunScreenSaver is called to launch a screensaver when the Roku has been idle for the configured idle time. The screensaver to launch is selected by the user on the Screensaver settings page. The Roku box may not start the custom screensaver and will use a default screensaver instead if there is insufficient memory to start a screensaver.

Sub RunScreenSaverSettings()

RunScreenSaverSettings is called when the user selects “Custom Settings” on the Screensaver settings page.

User interaction/events

Roku SDK UI objects provide an event oriented model for user interaction. Instead of receiving and directly handling all of the IR events received by the application, the UI elements will handle all navigation commands directly and send higher level events to the script as the focus changes or the user makes a selection. Scrolling, trick modes and screen-to-screen navigation is handled by the SDK UI objects and the script generally only needs to interact when there is a change in context or the user highlights or selects new data elements. Refer to the Event Loops section or the Class Interface sections for additional information.

Customization

The objects in the user interface framework expose a set of screen types which standardize user interaction and make it easy for developers to quickly write and deploy applications. Screen types enforce a user interaction model and ensure consistency between applications. They may be customized to provide a unique, developer specific look-and-feel. Customization is currently focused on "re-skinning" the application and supports the following types of changes:

  • Add an application specific image to the top-level menu
  • Change the text to be displayed on the main menu to identify the application
  • Change the application logo to be displayed in the header area for the screen
  • Change the artwork used on the "overhang" or header area for the screen
  • Change the background color for the screen
  • Change the colors used for font rendering on text, buttons, and screens

Within the application the developer is free to combine the available screen types and controls as needed to implement their application. The hierarchy of screens is unique for an application and depends on the user experience desired. Some applications may be fairly "flat" while others may have a deeper hierarchy.
